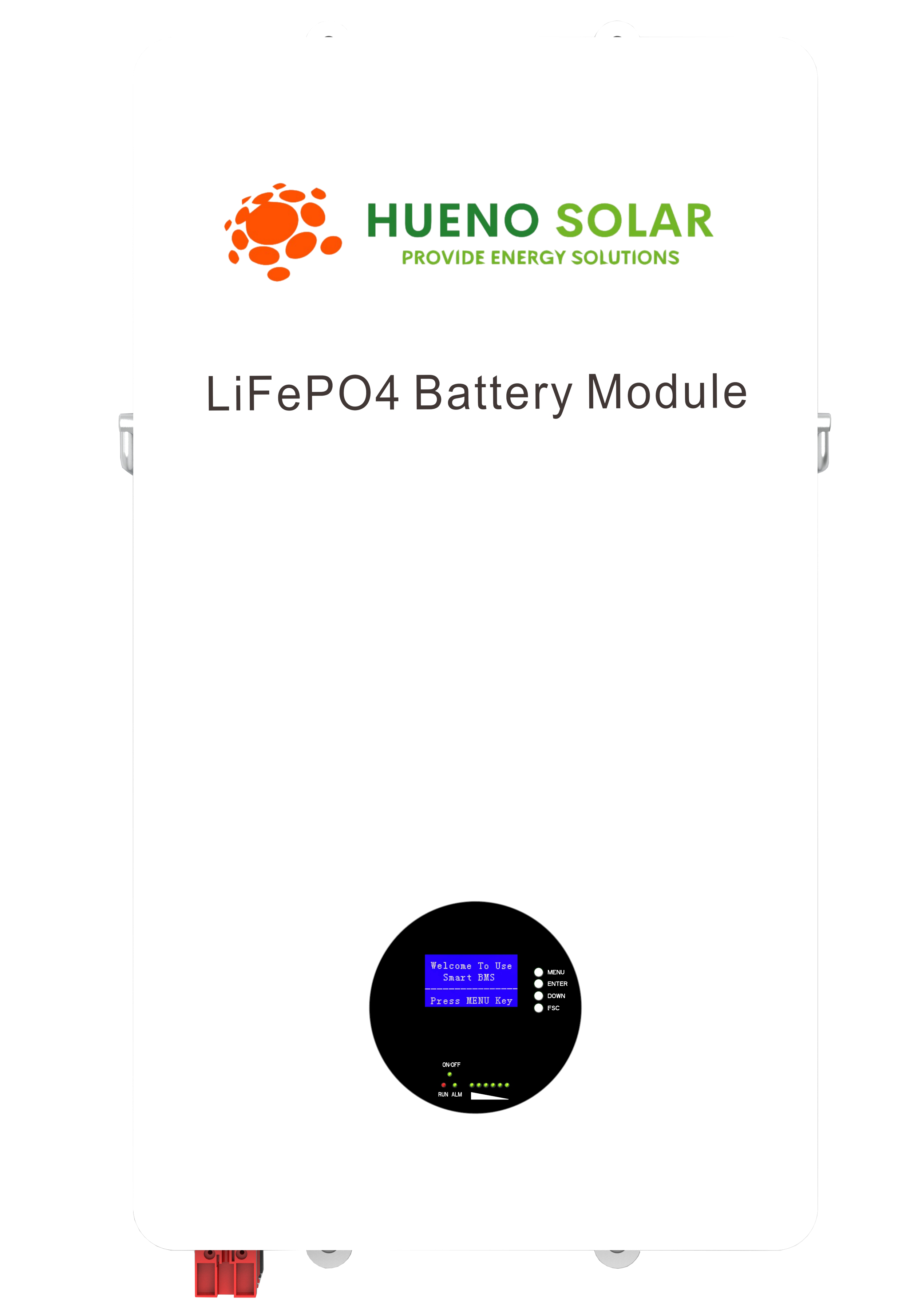

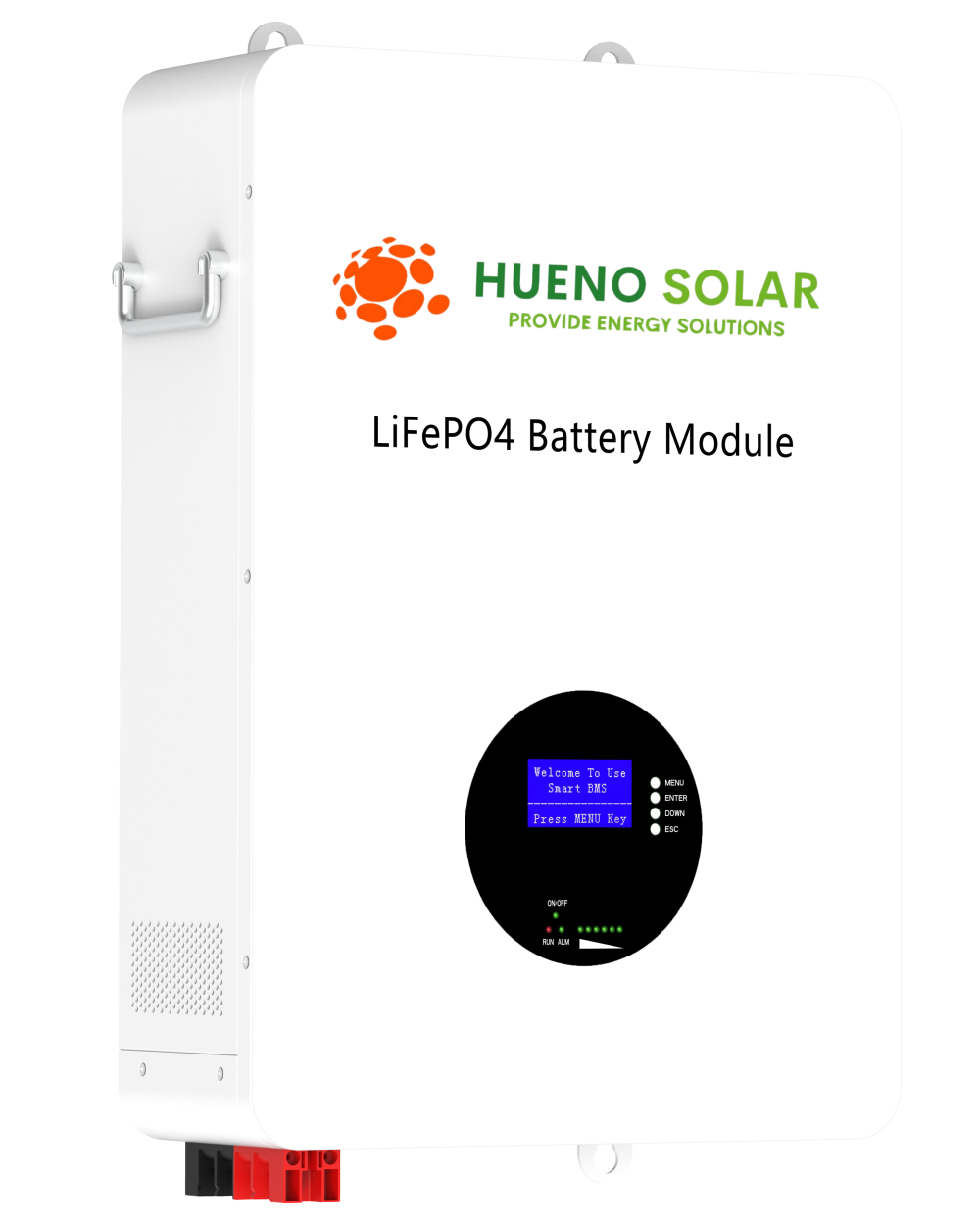

Advanced Lithium Battery Storage High-Performance Energy Storage Battery for Reliable Power Solutions
Discover the power of Advanced Lithium Battery Storage for efficient, long-lasting energy solutions. Our Energy Storage Battery is designed for residential, commercial, and off-grid applications, offering eco-friendly and cost-effective power management to meet diverse energy needs.
Please email the sales team for factory direct supply prices.
Table of Contents
Features
- ✦ Model Number: HEWA01
✦ Brand Name: Hueno Energy (Support OEM/ODM)
✦ Battery type: Lifepo4/Lithium Battery - ✦ Grid connection: Hybrid grid
- ✦ System Type: Wall-mounted
- ✦ High-Efficiency Energy Storage: This 51.2V 50Ah to 200Ah lithium-ion home storage battery is designed for efficient energy storage and utilization, perfect for users seeking to maximize their solar power potential and reduce their reliance on the grid.
- ✦ Long-Lasting Lifespan: With a protection class of IP60, this battery is built to withstand harsh environments and ensure a long lifespan, providing users with peace of mind and reliable performance.
- ✦ Versatile Communication Options: Equipped with CAN, RS232, and RS485 communication ports, this battery offers flexible connectivity options, allowing users to easily integrate it with various systems and devices.
- ✦ Compact Design: Measuring 525mm x 485mm x 170mm, this wall-mounted battery is designed to be compact and space-efficient, making it ideal for users with limited storage space.
- High-Power Capacity: With an output power range of 5~10 kWh, this battery provides users with a reliable source of power for their homes, perfect for those who want to store excess energy generated from solar power systems.
Applications
- ✦ Smart grid, micro-grid system.
- ✦ Mobile container storage system.
- ✦ Other Energy Storage System.
- ✦ Load tracking energy storage system.
- ✦ Load tracking energy storage system.
- ✦ Load tracking energy storage system.
- ✦ Grid frequency adjustment energy storage system
- ✦ New energy communication base station, Core computer room, lDC, UPS.
- ✦ New energy generation (solar, wind, PV/wind access to energy storage system.
Customization
- ✦ Customized logo: Min. order: 10 piece
- ✦ Customized packaging: Min. order: 20 piece
- ✦ Graphic customization: Min. order: 30 piece
- ✦ Please consult the sales team for more details.
Factory Direct Price
- ✦ Please email the sales team for factory direct supply prices.
Supply Ability & Samples
- ✦ Supply Ability: 80000 Pieces per Month
- ✦ Sample Number: 1 Piece
- ✦ Sample price: Please consult the sales team.
Lead Time
- ✦ 1 Piece≤Quantity≤5 Pieces: need 15 days
- ✦ 5 Pieces＜Quantity： To be negotiated
- ✦ Please email the sales team for expedited time.
Packaging Details & Delivery Port
- ✦ Selling Units: Single item
- ✦ Packaging Details: Carton Packing
- ✦ Place of Origin: Guangdong, China
- ✦ Delivery Port： SHENZHEN
Weight & Dimensions
| MODEL | HEW50WH | HEW100WH | HEW150WH | HEW200WH | |||
| Pack Dim L*W*H(mm) | 525*390*150 | 525*485*170 | 680*545*150 | 590*375*245 | |||
| Package Dim L*W*H(mm) | 610*485*250 | 600*485*255 | 760*625*240 | 685*470*350 | |||
| Net Weight(kg) | 39.5 | 43.4 | 72 | 82 | |||
| Gross Weight(kg) | 41.5 | 45.9 | 75 | 85 | |||
Specifications
| MODEL | HEW50WH | HEW100WH | HEW150WH | HEW200WH | ||||
| Base Data | Rate voltage(Vdc) | 51.2 | 51.2 | 51.2 | 51.2 | |||
| Rate capacity(AH) | 50 | 100 | 150 | 200 | ||||
| Energy storage(KWH) | 2.56 | 5.12 | 7.68 | 10.24 | ||||
| Cycle life | ≥6000 cycles to 85% DOD | |||||||
| Months self-discharge | ≤2% | |||||||
| Efficiency of charge | 100% at 0.2C | |||||||
| Efficiency of discharge | 96-99% at 1C | |||||||
| Standard Charge | Charge voltage | 58.4 | ||||||
| Charge mode | 0.2C to 58.4V, then 58.4V, Charge current to 0.02C ( CC/CV ) | |||||||
| Charge current | 10A | 20A | 30A | 40A | ||||
| Max. Charge current | 50A | 100A | 120A | 200A | ||||
| Charge cut-off voltage | 58.4 VDC | |||||||
| Standard Discharge | Continuous current | 50A | 100A | 120A | 200A | |||
| Discharge cut-off voltage | 44.8 VDC | |||||||
| Environmental | Charge temperature | 0℃ to 45℃ (32F to 113F) @ 60±25% Relative Humidity | ||||||
| Discharge temperature | -20℃ to 60℃(-4F to 140F) @ 60±25% Relative Humidity | |||||||
| Storage temperature | 0℃ to 40℃ (32F to 104F) @ 60±25% Relative Humidity | |||||||
| Mechanical | IP Class | IP60 | ||||||
| Material system | LiFePO4 | |||||||
| Case material | Metal | |||||||
| Case Type | Rack / Wall Mount | |||||||
| Terminal | M8 | |||||||
| Protocol(Optional) | CANBus/RS485/RS232 | |||||||
| SOC(Optional) | LED/LCD | |||||||
| The quality assurance period | 60 months | |||||||
